ACR Electronics

Acr Rcl95 White Led Spotlight With Wired Point Pad And Wireless Hand Held 12-24v

Acr Rcl95 White Led Spotlight With Wired Point Pad And Wireless Hand Held 12-24v

Regular price $680.95 USD
Regular price Sale price $680.95 USD
Sale Sold out

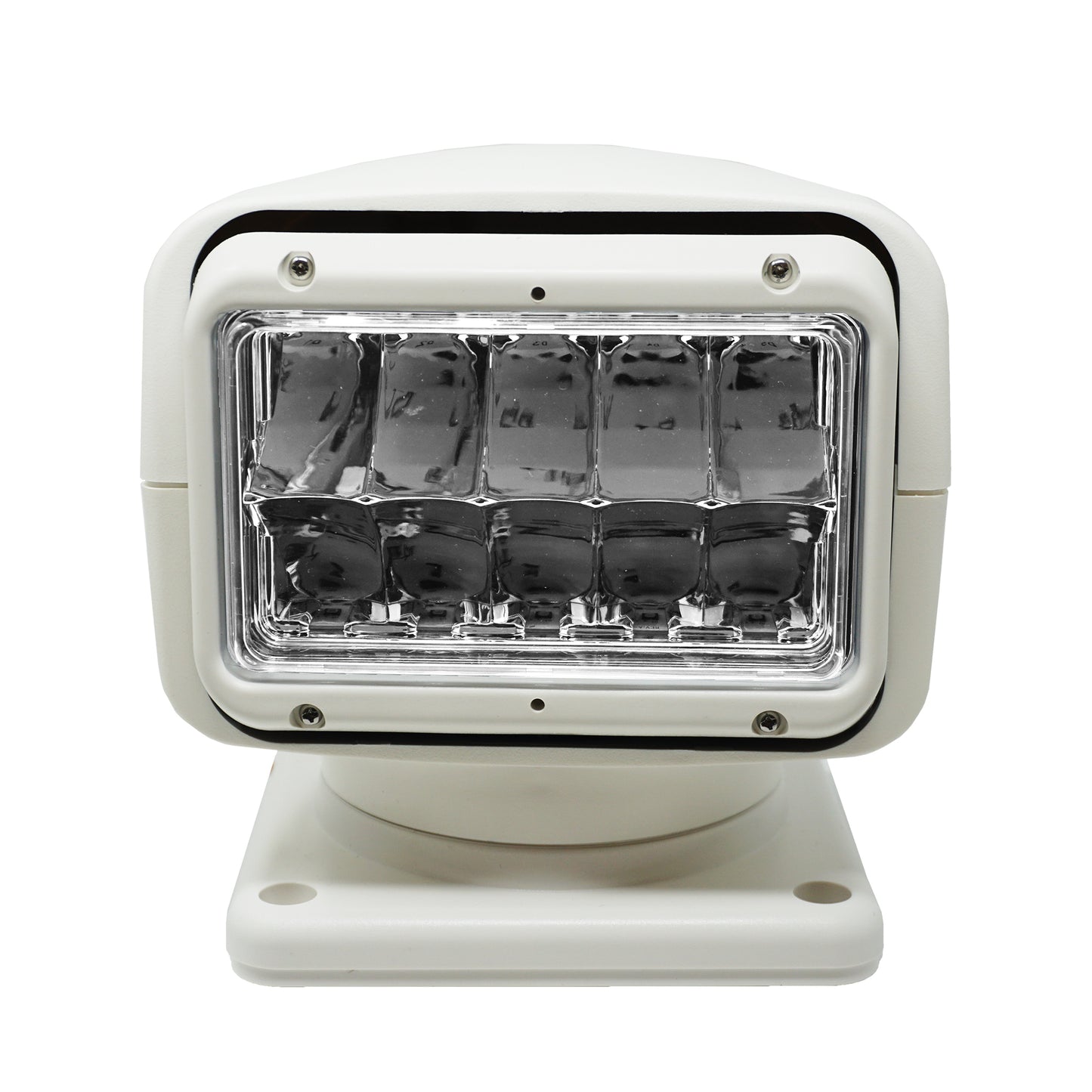

ACR RCL95 White LED Spotlight

With Wired Point Pad And

Model: 1958
  • 10 High Flux LEDs (OSRAM)
  • 460,000 Candela, Max Beam Distance 4,501 Feet (1,372 m)
  • Wireless Handheld Remote and Wired Dash Mount Joystick (Both Included)
  • 360o Continuous Rotation and 135o Tilt
  • Auto-home return when off
  • 4 Amps (12V) to 2 Amps (24V)
  • Efficient, long life LED’s - 50,000 operating hours
  • UV & Weather Resistant
  • Simple Installation (12-24V Power Connection and 5M Wired Joystick Control Cable)

The all new RCL-95 LED searchlight was designed for performance and simplicity. With an industry best 460,000 candelas using 10 High Flux (50W) LEDs, you have visibility over ¾ of a nautical mile to light the way to your destination. The RCL-95 LED’s sleek design makes it an attractive and cost-effective choice for small to medium sized recreational powerboats as well as light commercial vessels.

Use the RCL-95 LED searchlight with either the wired dash mount joystick control or the wireless handheld remote to rotate the light 360 degrees continuously at either a fast or slow speed without the hassle of a hard stop. With an 8 degree beam angle, the light can tilt an impressive 135 degrees to make lighting draw bridges, buoys and docks a breeze. The auto-home feature will conveniently park the searchlight back at the desired starting location each time you turn the searchlight off. The RCL-95 is weather resistant with the electronics located in the IP68 water-resistant light head instead of the base for increased protection. The ASA housing and lens are sealed against the elements for years of trouble-free operation.

Specifications
ACR Product Number PN 1958 (White)
Size 5.9 x 7.1 x 7.5"" (15 x 18 x 19 cm)
Weight 4.2 lbs (1.9 kg) (searchlight only)
Material Acrylonitrile Styrene Acrylate (ASA) Housing for improved weather resistance
Color White
Operation Wireless Handheld Remote (included) / 433.92 MHz or Wired Dash Mount Joystick (included with 16.4’ (5m) cable)
Peak Beam Candle Power 460,000
Beam Maximum Distance 4,501 ft (1,372 meters)
Beam Pattern / Angle Spot / 8o
Elevation Angle 135°
Rotation 360° Continuous
Rotation Speed Fast 19° per second, slow 12° per second
Elevation Speed 11° per second
Lamp LED 50W (OSRAM x 10) / 50,000 hour life
Accessories Wireless Dash Mount Remote (PN 9635)16.4’ (5 m) Extension Cable for Wired Controller (PN 9638)Replacement GOLIGHT® Mounting Plate (PN 9639) — Used when replacing GOLIGHT® Stryker or RadioRay Searchlights (will not work for RadioRay portable model)*
Footprint Diameter (distance between mounting holes) 4.92" x 4.92" (12.5 x 12.5 cm)
Total Footprint (dimensions of searchlight base) 6.06" x 6.06" (15.4 x 15.4 cm)
Power Requirements 12 or 24 V DC
Warranty 2 Years
