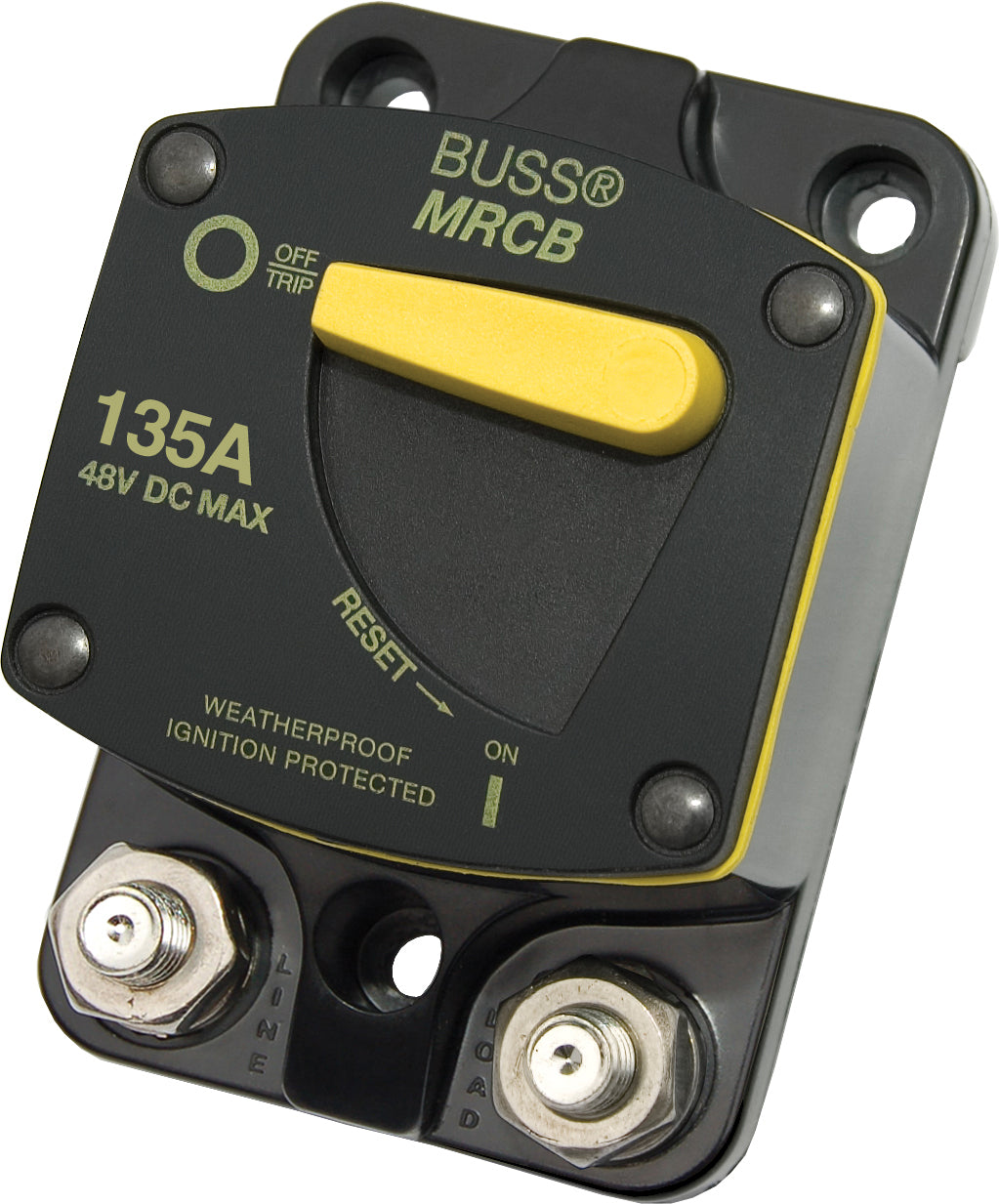

Blue Sea 187-series 135 Amp Circuit Breaker Surface Mount
Blue Sea 187-series 135 Amp Circuit Breaker Surface Mount
Regular price
$99.69 USD
Regular price
Sale price
$99.69 USD
Unit price
/
per
Blue Sea Systems 187-Series Circuit Breaker - Surface Mount 135A
Model: 7147-BSS- Combines switching and circuit protection into a single device*
- Clear, single lever operation
- ""Trip Free"" design cannot be held ""ON"" during fault current condition
- Waterproof
- Recessed mounting holes for clean appearance
- Large Clearance around terminal studs accept heavy gauge wire lugs
- Robust 5/16 M8 terminals provide high torque connections
- Large lever with vertical/horizontal orientation provides indication of trip status
- Ignition protected - Safe for installation aboard gasoline powered boats
- Meets SAE J1171 external ignition protection requirements
* Do not use as a switch where high inrush currents are expected.
SpecificationsAmperage | 135A |
Maximum Voltage | 48vDC |
Mounting | Surface Mount |
Circuit Breaker Type | Thermally responsive Bi-metal blade |
Terminal Stud Torque | 75 in-lb (8.47 Nm) |
Interrupt Capacity | 5000A @ 12V 3000A @ 24V 1500A @ 42V |
Minimum Operating Temperature | -40° C |
Maximum Operating Temperature | 85° C |
Case Material | Thermoset Polyester |
Circuit Breaker Class | Type III - switchable/manual reset - trip free |
Mounting Hole | Accept #10 (M5) Screw |
Terminal Stud Size | 5/16"" - 18 |
