Blue Sea Systems

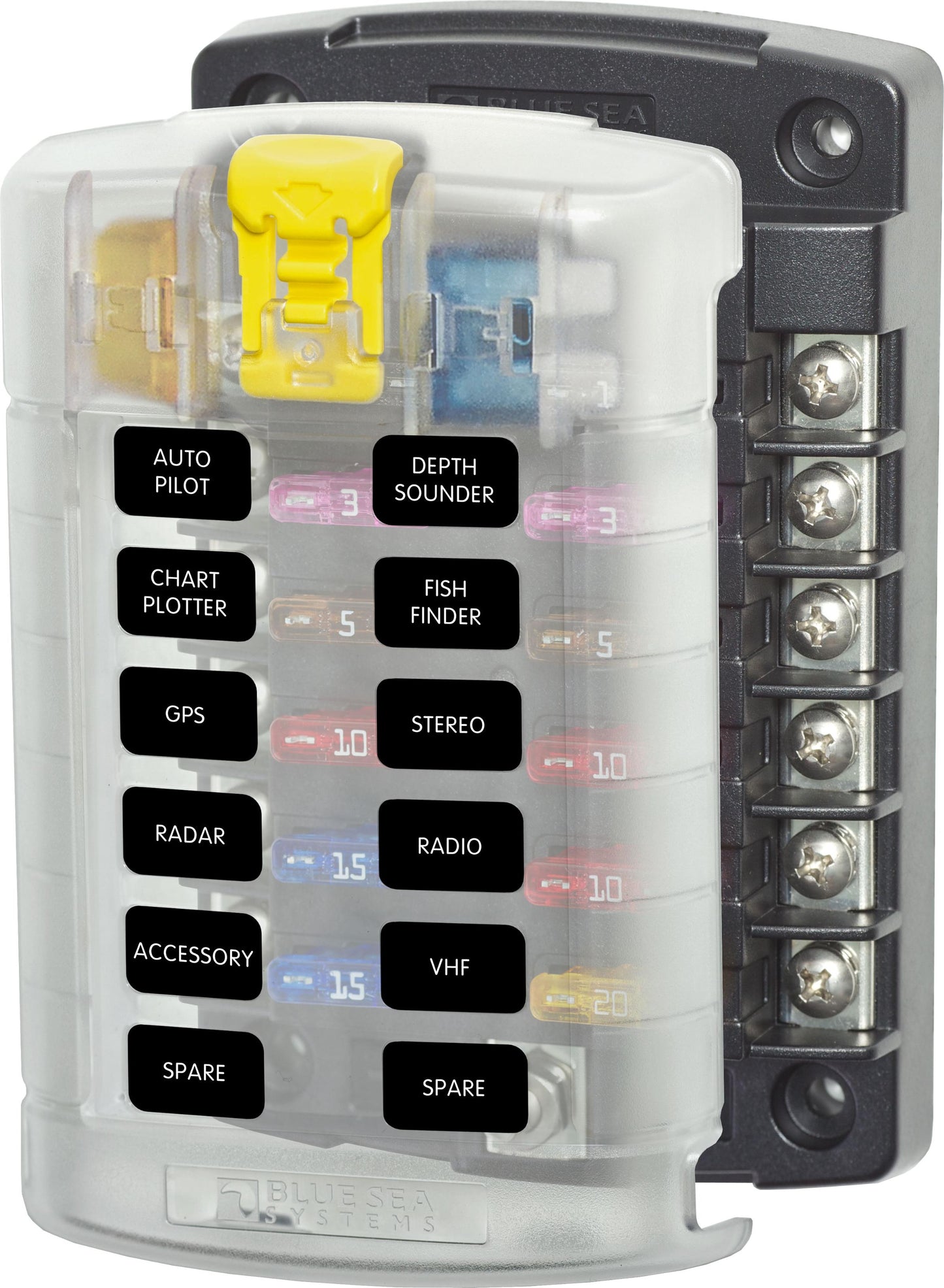

Blue Sea 5029 12-gang Fuse Block St Ato-atc With Cover

Blue Sea 5029 12-gang Fuse Block St Ato-atc With Cover

Regular price $61.99 USD
Regular price Sale price $61.99 USD
Sale Sold out

Blue Sea Systems ST Blade Fuse Block - 12 Circuits with Cover

Model: 5029-BSS
  • Positive distribution bus with #10-32 stud
  • Can be used for 24-hour circuits
  • Cover satisfies ABYC/USCG requirements for insulation, incorporates an easy to open push button latch providing easy access to fuses, storage for two spare fuses, and label recesses that accept Blue Sea Systems"" Small Format Labels for circuit identification
  • Fuse blocks with covers include 20 write-on circuit labels
  • Tin-plated copper buses and fuse clips
  • Accepts ring or snap fork type terminals
  • Accepts ATO® and ATC® fast acting blade fuses
  • Fuses sold separately
Specifications
Circuits 12
Maximum Amperage 100A per block
30A per circuit
Maximum Voltage 32V DC
Mounting #8 Screw (M4)
Positive Bus #10-32 Stud
Recommended Torque 24 in-lb (2.71 N m)
Screw Terminal Torque 18 in-lb (2.03 Nm)
Screw Terminal Type #8-32 Screws with captive star lock washer
