Blue Sea Systems

Blue Sea St Clb Circuit Breaker Block - 6 Position With Negative Bus

Blue Sea St Clb Circuit Breaker Block - 6 Position With Negative Bus

Regular price $74.79 USD
Regular price Sale price $74.79 USD
Sale Sold out

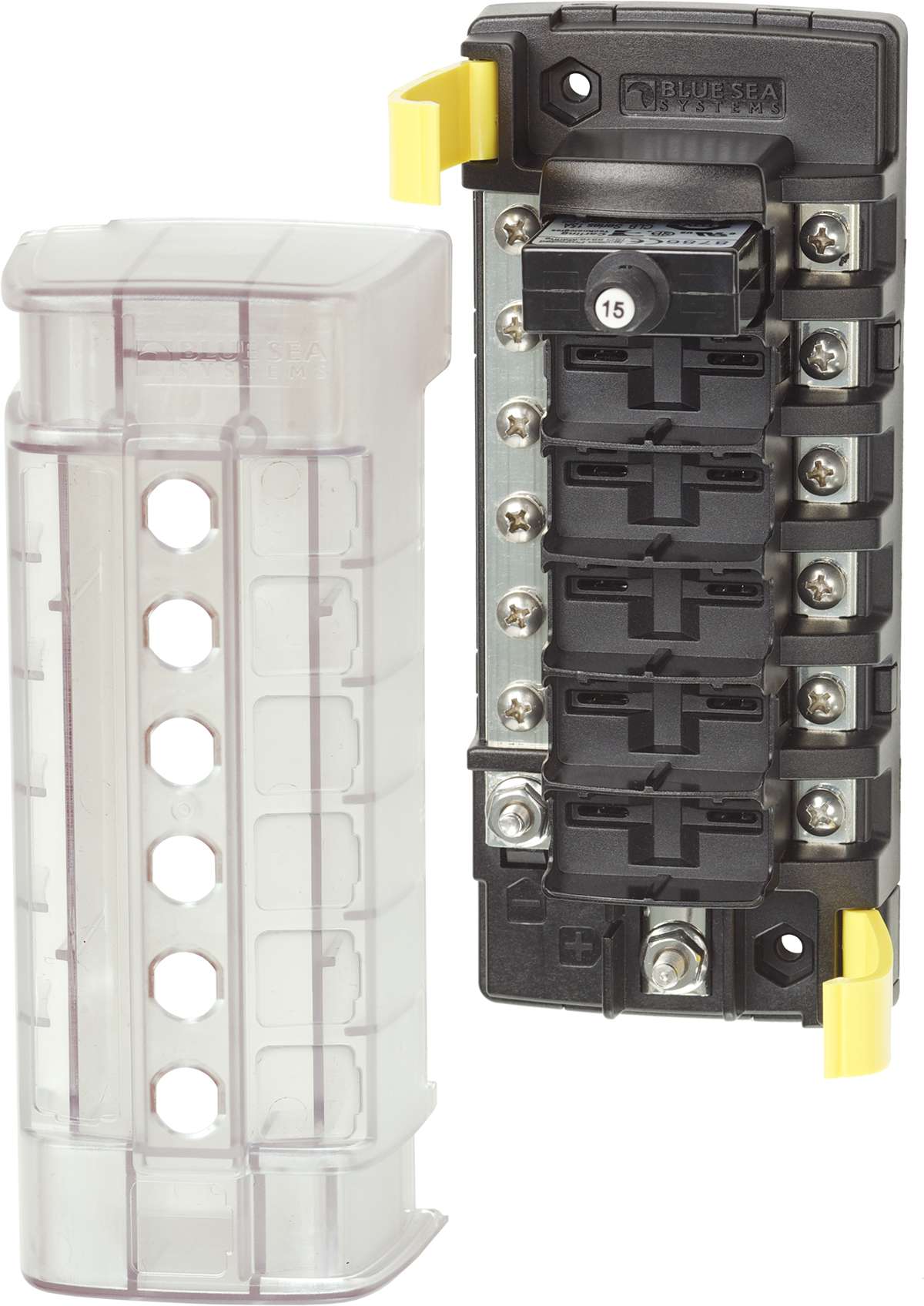

Blue Sea ST CLB Circuit Breaker Block - 6 Position with Negative Bus

Model: 5052-BSS
  • Quick connect clips allow circuit breakers to snap easily into place
  • Tin-plated copper busses and screw terminals
  • Clear insulating cover with square format label recesses, satisfies ABYC/USCG insulation requirements
  • Easy to open clip on cover
  • Breakouts allow wire access in two directions
  • Accepts ring terminals
  • Optional push button waterproof boots or dress nuts can be installed over cover
  • Accepts square labels

The advantage of a resettable circuit breaker over a fuse is well known however people find circuit breakers more expensive and difficult to install. The ST CLB Circuit Breaker Block solves this issue by using the compact, snap-in-place CLB resettable circuit breaker which makes breakers as easy to install as a fuse.

Specifications
Circuits 6
Maximum Amperage 100A (per block)
32A (per circuit)
Maximum Voltage 32V DC
Negative Bus #10-32 Stud
Positive Bus #10-32 Stud
Source Common Source
Minimum Operating Temperature -10° C
Maximum Operating Temperature 60° C
Mounting Centers 5.63in (143 mm)
