Blue Sea Systems

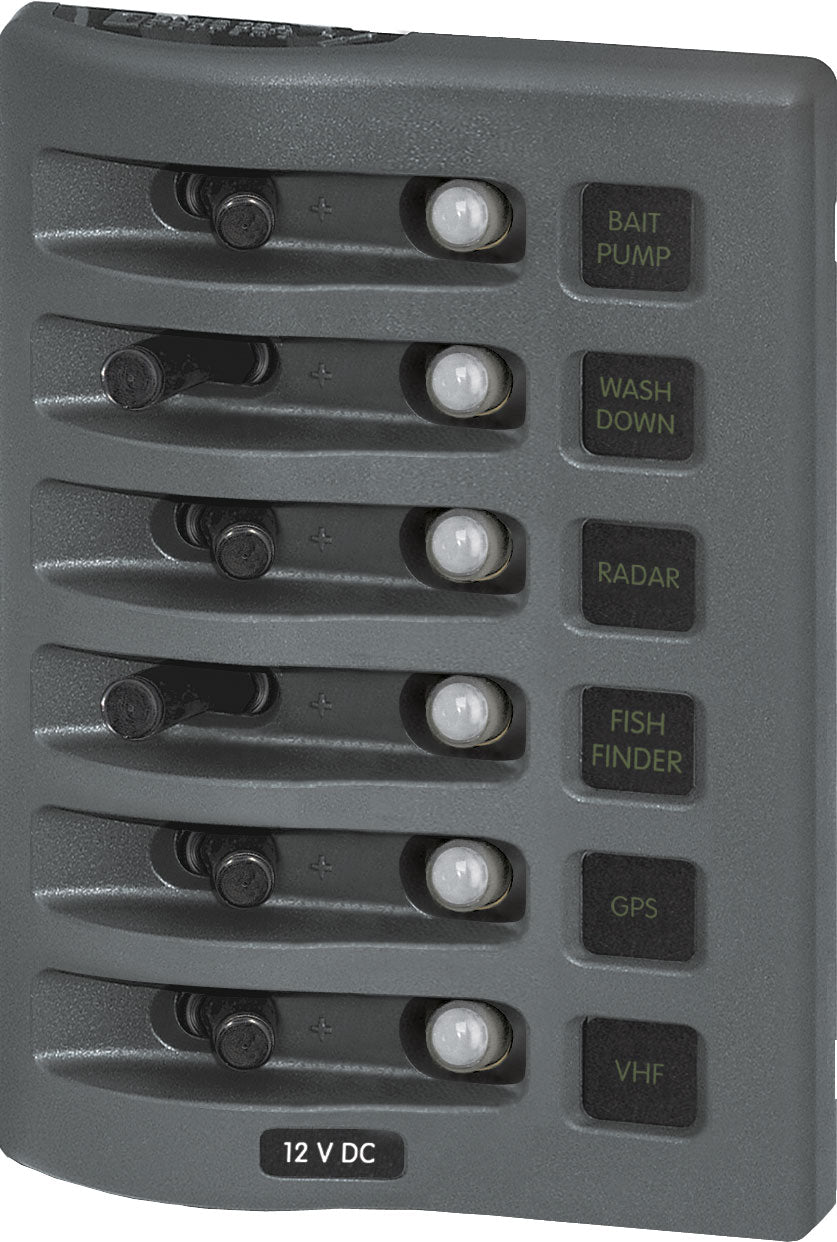

Blue Sea Weather Deck Panel 12v 6 Circuit Breaker Panel

Blue Sea Weather Deck Panel 12v 6 Circuit Breaker Panel

Regular price $170.19 USD
Regular price Sale price $170.19 USD
Sale Sold out

Blue Sea Systems Weather Deck 12V DC Waterproof Circuit Breaker Panel - Gray 6 Positions

Model: 4376-BSS
  • Rated IP67-temporary immersion for 30 minutes
  • Designed for flybridge and open cockpit applications
  • Independent label backlighting allows switching and dimming
  • Compatible with all Blue Sea Systems Digital Dimmers
  • Each panel can be mounted in four different orientations
  • Green LEDs aid low-light readability. All labels will be lit when the panel is powered, regardless of individual switch position.
Specifications
Weatherproof Waterproof
Positions 6
Nominal Voltage 12V DC
24V DC
Circuit Protection Circuit Breaker
Maximum Amperage 15A @ 12V DC (per circuit)
9A @ 24V DC (per circuit)
Panel Cumulative Rating 45A
Backlit Label Green LED
Backlighting Amperage 10mA /Illuminated Circuit
Backlighting Voltage 12 or 24V DC
Material Reinforced Polycarbonate
Dimensions 6.00"" H x 4.25"" W x 3.5""D
