Digital 1273pw Cellular Bullet 6db 695-3000mhz 9"" L-bracket

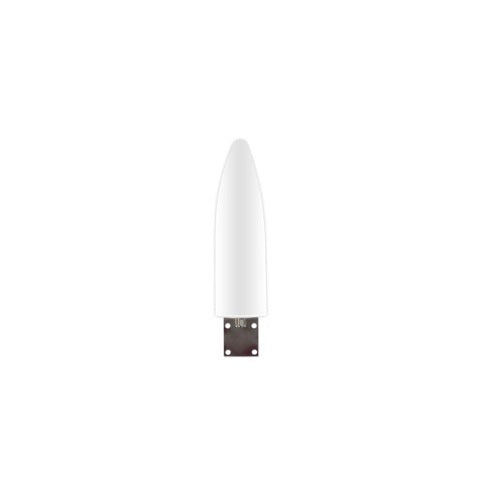

Digital Antenna 1273-PW Bullet Cellular Antenna

Wideband 695-3000 MHz 4-7dBi

• Excellent 700 MHZ LTE performance
• Compact design
• UV stable polyurethane finish
• Foam filled for vibration stabilization
• VSWR <1.5:1 in 3G & 4G bands
• Universal applications
• RoHS Compliant
• Five year warranty

Digital Antenna is known for designing and manufacturing rugged, dependable antennas that perform when needed. The bar has been raised with the patent pending design of a wideband omni-directional antenna covering 695-3000 MHz.

The bullet-shaped 1273-PW/PB provides excellent performance from LTE to WiMax and is ideal for mobile or fixed locations. Maximum performance and distance is achieved with its physically resonant design and outstanding VSWR of less than 1.5:1 in all 3G and 4G bands. Low VSWR equals maximum radiated power from the antenna, providing maximum signal range.

Electrical performance is complemented by rugged mechanical construction. This bullet antenna is foam filled for vibration stabilization and long lasting performance in extreme conditions. Available in white or black, the UV stable polyurethane finish provides outstanding corrosion resistance in the harshest environments.

Model 1273-PW/PB includes an L-bracket with stainless steel U-bolts for pole or wall mounting. The antenna terminates in an N type female connector.

Applications
700, 800, 850, 900, 1500, 1700, 1800, 1900, 2100, 2500 and 2600 MHz frequency bands; 4G, 3G, AWS, LTE, CLR, DCS, IMT, ISM, PCS, WCDMA, WCS, WiFi, WiMax, Cellular

• Antenna
• L-bracket with U-bolts
