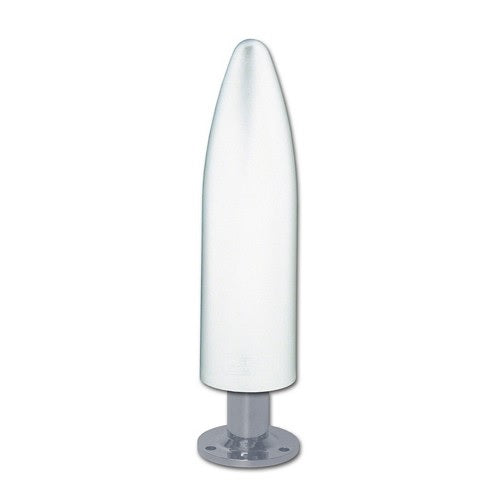

Digital Antenna 1285-PW Wide-band Omni-directional Cellular Antenna
695-3000 Mhz, 4-7dBi, Deck Mount
Model: 1285-PW- Excellent 700 MHZ LTE performance
- Compact design
- UV stable polyurethane finish
- Vibration stabilized foam filled
- VSWR <1.5:1 in 3G & 4G bands
- Universal applications
- RoHS Compliant
- Five year warranty
Digital Antenna’s new wide band ?bullet? antenna covers 695- 3000 MHz and provides excellent performance from LTE to WiMax in a compact design. This new patent pending 4G antenna solution is manufactured to be rugged and dependable.
Model 1285-PW is ideal for mobile or marine applications with a 316 stainless steel base. Maximum performance and distance is achieved with its physically resonant design and outstanding VSWR of less than 1.5:1 in all 3G and 4G bands. Low VSWR equals maximum radiated power from the antenna, providing maximum signal range.
Electrical performance is complemented by rugged mechanical construction. This bullet antenna is foam filled for vibration stabilization and long lasting performance in extreme conditions. Available in white or black, the UV stable polyurethane finish provides outstanding corrosion resistance in the harshest environments.
Model 1285-PW/PB includes a 316 stainless steel base for deck mounting. The antenna terminates in an N type female connector.
Applications:
##700, 800, 850, 900, 1500, 1700, 1800, 1900, 2100, 2500 and 2600 MHz frequency bands; 4G, 3G, AWS, LTE, CLR, DCS, IMT, ISM, PCS, WCDMA, WCS, WiFi, WiMax, Cellular
Frequencies | 695-3000 MHz |
VSWR | <1.5: 1 = 695-3000 MHZ (3G & 4G bands) <1.8: 1 = 695-3000 MHZ |
Weight | 15 oz |
Radiation pattern | Omni-directional |
Use | Indoor or outdoor |
Gain | 4-7dBi |
Connector | N-type female |
PIM | -155dBc |
Mount | Stainless steel deck mount |
Max power | 50w |
Impedance | 50 ohm |
Polarization | Vertical | tr>
Elements | Copper |
Win rating | >110 mph |
Exterior finish | UV stable white |
Dimensions | 8.875"" L x 2.375"" OD (225 x 60 mm) |
What's in the Box:
- Antenna
- Stainless steel deck mount
