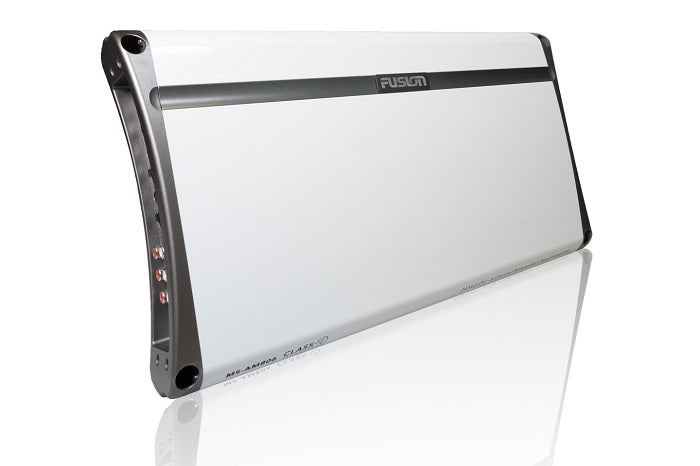

Fusion Ms-am806 Amplifier 24v 800 Watt 6 Channel

Fusion Ms-am806 Amplifier 24v 800 Watt 6 Channel

Regular price $499.99 USD
Regular price Sale price $499.99 USD
Sale Sold out

Fusion MS-AM806 6 Channel Marine Amplifier

Model: 010-01703-00
  • FUTRANZ Heat Sink Technology, which transfers heat more efficiently and offers more thermal stability and maximum component reliability.
  • F.R.A.T FUSION Regulated Amplifier Technology, which outputs enormous power output at the lowest voltage
  • F.I.S.T FUSION Intercooled Semi-Conductor Technology, which clams down internal power switching - rapidly removing heat from all associated semi-conductors

The FUSION AM Series Marine amplifiers are purpose built for the marine environment, boasting some of the most impressive environmental protection available, to deliver performance on the water like never before.

The MS-AM806 is a 24V amplifier.

Incorporating heat-tempered and conformal coated PCB's for maximum product life and gold plated connectors for improved signal flow - The result is a clean and powerful reproduction of the input signal, delivering enough power to rock the boat.

The 6 Channel 1600 Watt (Peak) MS-AM806 design ensures clean and powerful amplification of the input signal. It has unlimited configuation options available to help spread the sound around your vessel:

3 pairs of speakers (6 speakers)
6 pairs of speakers (12 speakers) wired in parallel at 2 Ohms (2 x 4 Ohm speakers per channel)
1 Subwoofer (bridged) and 2 pairs of speakers ( 4 speakers)
2 Subwoofers (4 bridged channels) and a pair of speakers (2 speakers)

Specifications
Frequency response 5Hz - 38kHz +/- 3dB
Peak power 1600 Watts
Rated Power 28.8 Volt power output specs 80 Watts RMS x 6 @ 4? 1% THD+N, 130 Watts RMS x 6 @ 2? 1% THD+N, 275 Watts RMS x 3 @ 4? Bridged 1% THD+N
Input Voltage 24vDC
