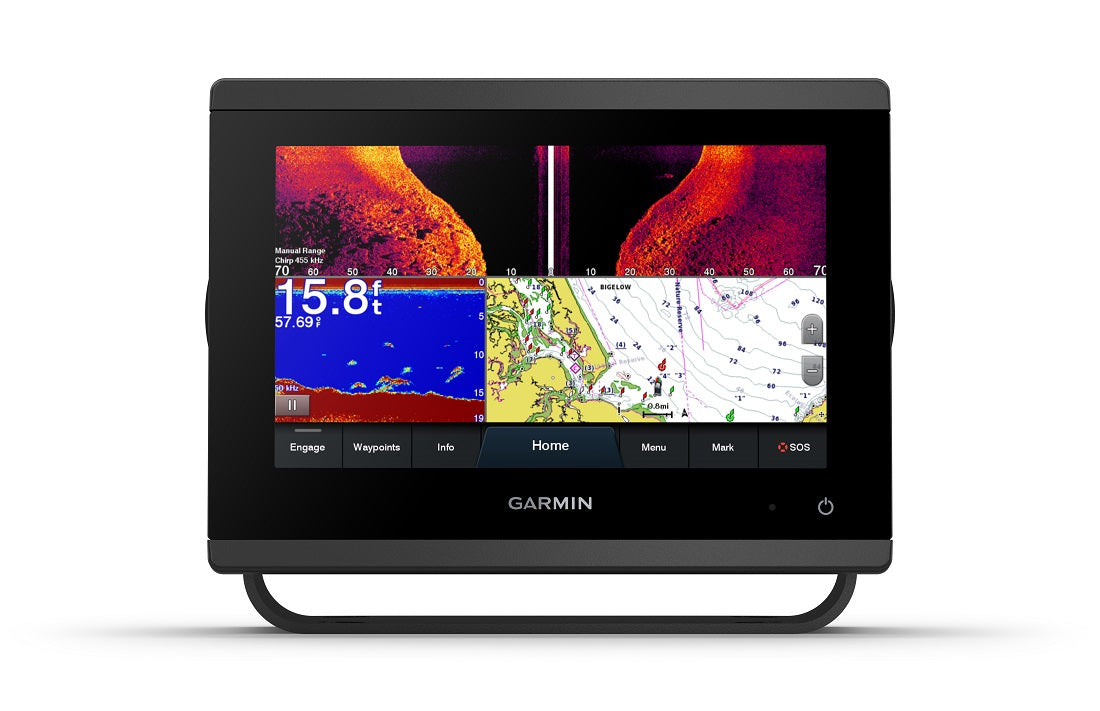

Garmin Gpsmap743xsv 7"" Combo With Bluechart Us G3 And Lakevu G3
Garmin Gpsmap743xsv 7"" Combo With Bluechart Us G3 And Lakevu G3
Garmin GPSMAP 743xsv SideVü, ClearVü and Traditional CHIRP Sonar with BlueChart® g3 coastal charts and LakeVü g3
Model: 010-02365-03- Easily integrate with more engines.
- Connect to compatible third-party devices with OneHelm™ digital switching.
- Easily build your marine system using the best of network connectivity.
- Navigate any waters with preloaded mapping and coastal charts.
- See below your boat with built-in sonar capabilities.
- Manage your marine experience from nearly anywhere1.
With 60% more display pixels and nearly double the processing power of previous-generation 7" GPSMAP devices, this crisp high-resolution chartplotter/sonar combo integrates seamlessly into your Garmin marine system.
Get built-in Ultra High-Definition SideVü and ClearVü scanning sonars with vivid, high-contrast color palettes to help distinguish fish from structure. GPSMAP 743xsv also supports 1 kW CHIRP traditional sonar capabilities.
Pair with Panoptix or Panoptix LiveScope™ easy-to-interpret live sonar (transducer sold separately) to see all around your boat in real time.
With its added processing power and new slimline design featuring edge-to-edge glass and a smaller unit footprint, it’s easy to retrofit this 7" plotter in a wider range of dash configurations.
New higher-resolution 7" displays offer improved sunlight readability with 60% more pixels than previous-generation 7" GPSMAP devices.
Experience unparalleled coverage and detail with preloaded BlueChart® g3 coastal charts and LakeVü g3 inland maps featuring integrated Garmin and Navionics® content and Auto Guidance3 technology.
Upgrade to our reliable premium charts2, which add even more unparalleled features, such as high-resolution relief shading, to help you on each trip.
SpecificationsGeneral | |
PHYSICAL DIMENSIONS | 7.6"" x 5.5"" x 2.9"" (19.2 x 14.0 x 7.4 cm) |
DISPLAY SIZE | 6.1"" x 3.5""; 7.0"" diagonal (15.4 x 9.1 cm; 17.8 cm diagonal) |
DISPLAY RESOLUTION | 1024 x 600 pixels |
DISPLAY TYPE | WSVGA display |
WEIGHT | 2.8 lbs (1.3 kg) |
WATER RATING | IPX7 |
POLARIZED SUPPORT | Yes |
POWER CONSUMPTION | Max power usage at 10 Vdc: 17.6 W Typical current draw at 12 Vdc: 1.1 A Max current draw at 12 Vdc: 1.5 A |
ANTENNA | Internal or external over NMEA 2000 |
MOUNTING OPTIONS | Bail, flush or flat |
RECEIVER | 10 Hz high-sensitivity |
GARMIN MARINE NETWORK™ PORTS | 1 |
Maps & Memory | |
PRELOADED MAPS | BlueChart® g3 (coastal maps) and LakeVü g3 (inland maps) |
ACCEPTS DATA CARDS | 2 microSD™ cards (back of unit) |
WAYPOINTS | 5,000 |
TRACK LOG | 50,000 points; 50 saved tracks |
ROUTES | 100 |
Outdoor Recreation | |
TIDE TABLES | Yes |
Chartplotter Features | |
GARMIN RADAR COMPATIBLE | Yes |
GARMIN SONAR COMPATIBLE | Yes (built-in) |
GARMIN SMARTMODE COMPATIBLE (CUSTOMIZABLE MONITOR PRESETS) | Yes |
SUPPORTS AIS (TRACKS TARGET SHIPS POSITION) | Yes |
SUPPORTS DSC (DISPLAYS POSITION DATA FROM DSC-CAPABLE VHF RADIO) | Yes |
SUPPORTS FUSION-LINK™ COMPATIBLE RADIOS | Yes |
GSD™ BLACK BOX SONAR SUPPORT | Yes |
GCV™ BLACK BOX SONAR SUPPORT | Yes |
ACTIVECAPTAIN COMPATIBLE | Yes |
GRID™ (GARMIN REMOTE INPUT DEVICE) COMPATIBLE | Yes |
WIRELESS REMOTE COMPATIBLE | Yes |
SAILING FEATURES | Yes |
Sonar Features & Specifications | |
DUAL-FREQUENCY (50/200 KHZ) SONAR CAPABLE | Yes |
DUAL-BEAM (77/200 KHZ) SONAR CAPABLE | Yes |
FREQUENCIES SUPPORTED | Traditional: 50/77/83/200 kHz CHIRP (low, medium, high) ClearVü (260/455/800 kHz) (dependent on transducer) |
CHIRP SONAR TECHNOLOGY | Yes (Built-in) |
CLEARVü | Yes with CHIRP (built-in) |
SIDEVü | Yes with CHIRP (built-in) |
MAXIMUM DEPTH | 5,000 ft at 1kW (depth capacity is dependent on water bottom type and other water conditions) |
BOTTOM LOCK (SHOWS RETURN FROM THE BOTTOM UP) | Yes |
WATER TEMPERATURE LOG AND GRAPH | Yes |
SONAR RECORDING | Yes |
SONAR HISTORY REWIND | Yes |
Connections | |
NMEA 2000® COMPATIBLE | Yes |
TRANSDUCER PIN NUMBERS | 12-pin (orange) |
NMEA 0183 INPUT PORTS | 1 (Differential) |
NMEA 0183 OUTPUT PORTS | 1 (Differential) |
VIDEO INPUT PORTS | 1 BNC |
WIRELESS CONNECTIVITY | Yes |
J1939 COMPATIBLE | Yes |
What's in the Box:
- GPSMAP 743xsv chartplotter
- microSD™ card preinstalled
- Power cable
- NMEA 2000® T-connector
- NMEA 2000 drop cable (2 meters)
- Bail mount kit with knobs
- Flush mount kit with gasket
- Protective cover
- Trim piece snap covers
- Documentation
- 8-pin transducer to 12-pin sounder adapter cable
