Garmin Gt34uhd-th Transducer Thru-hull 12-pin

Garmin Gt34uhd-th Transducer Thru-hull 12-pin

Regular price $799.99 USD
Regular price Sale price $799.99 USD
Sale Sold out

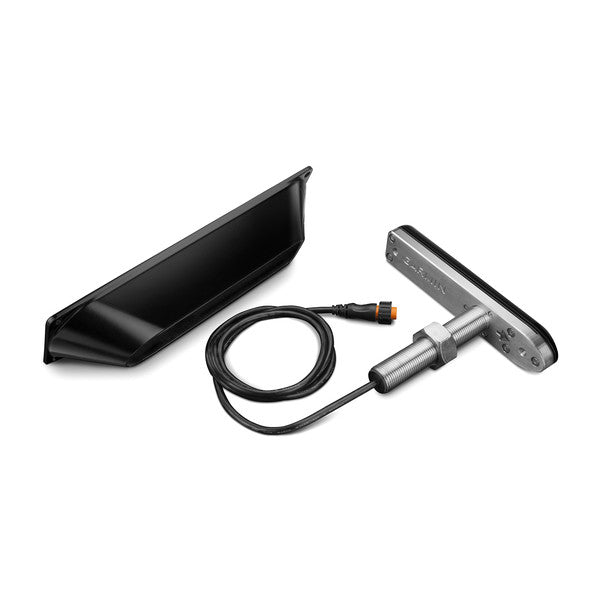

Garmin GT34UHD-TH Ultra High-Definition Thru-hull Transducer

Model: 010-12776-10

Add stunningly clear Ultra High-Definition ClearVü and Ultra High-Definition SideVü scanning sonar images to your compatible chartplotter via the GCV™ 20 sonar module. It includes 3 arrays, including a downward-facing element element - with frequencies ranging from 0.8 MHz (800 kHz) to 1.2 MHz (1,200 kHz) - and it’s recommended for hulls with up to a 5-degree deadrise angle.

This mode provides brilliant image clarity of structure and fish below your boat at greater depths than other high-frequency scanning sonars by putting more power on targets via a downward-facing element.

This mode delivers stunningly clear images of structure and fish off to the sides of your boat. This makes it easy to scout a fishing area quickly, because you can see everything the first time with such amazing clarity.

Frequency Ultra High-Definition ClearVü: 0.8 MHz (800 kHz), CHIRP range: 760-880 kHz

Ultra High-Definition SideVü: 1.2 MHz (1,200 kHz), CHIRP range: 1,060-1,170 kHz
Power 500 W
Beamwidth Ultra High-Defintion ClearVü: 0.74° x 46°

Ultra High-Defintion SideVü: 0.44° x 55°
Maximum depth Ultra High-Defintion ClearVü: 200 ft. down

Ultra High-Defintion SideVü: 125 ft. sides, 250 ft. total
Features Depth and Temperature
Number of pins 12
Cable length 20 ft
Supported deadrise/Transom angles Up to 25° deadrise

What's in the Box:
  • GT34UHD-TH
  • Fairing Block
