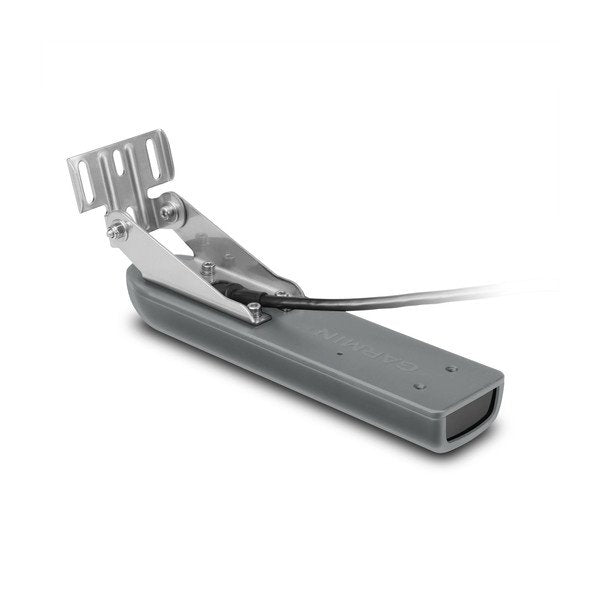

Garmin GT40-TM Transom Mount
Downvu/Sidevu 12-Pin
Model: 010-01963-00UPC: 0
Perfect for the shallow water fisherman who want traditional sonar, CHIRP ClearVü and CHIRP SideVü scanning sonar, this transom mounted transducer consistently displays fish arches as well as clear pictures of objects, structure and fish that pass below and to each side of your boat.
The CHIRP ClearVü/SideVü elements have a power rating of 500 W per element (1,500 W total) and operating frequencies of 455/800 kHz. The traditional sonar has a power rating of 500 W and operating frequencies of 77/200 kHz. It also includes a built-in fast response temperature sensor.
GT40-TM icludes a 12-pin transducer with mounting hardware and installation instructions. Follow the instructions carefully to avoid damaging your boat.
Specifications| General | |
| Frequency | |
| Traditional | (77/200 kHz) |
| ClearVü/SideVü CHIRP | 455 kHz (425-485 kHz) & 800 kHz (790-850 kHz) |
| Power | |
| Traditional | 500 W |
| ClearVü/SideVü | 500 W |
| Beamwidth | |
| Traditional | 45°/15° |
| ClearVü/SideVü | 1.1°x53° @ 455 kHz and 0.7°x30° @ 800 kHZ |
| Maximum depth | |
| Traditional | 1,900 ft. freshwater & 900 ft. saltwater |
| ClearVü | 750 ft |
| SideVü | 500 ft. |
| Depth/Speed/Temperature | Depth and Temperature |
| Number of pins | 12-pin |
| Cable length | 30 ft. |
| Supported deadrise/Transom angles | 0°-70° degree transom |
What's in the Box:
- 12-pin transducer
- mounting hardware
- installation instructions
