Garmin Gt41-tm Transom Mount Downvu-sidevu 12-pin
Garmin Gt41-tm Transom Mount Downvu-sidevu 12-pin
Couldn't load pickup availability

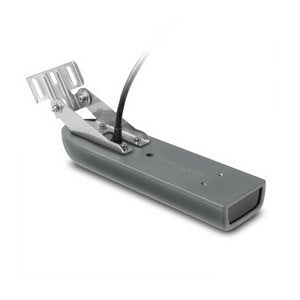

Garmin GT41-TM Plastic Transom Mount
Downvu/Sidevu 12-Pin
Model: 010-01964-00UPC: 753759152857
Perfect for the coastal and offshore fisherman who want traditional sonar, CHIRP ClearVü and CHIRP SideVü scanning sonar, this transom mounted transducer consistently displays fish arches as well as clear pictures of objects, structure and fish that pass below and to each side of your boat.
The CHIRP ClearVü/SideVü elements have a power rating of 500 W per element (1,500 W total) and operating frequencies of 260/455 kHz. The traditional sonar has a power rating of 600 W and operating frequencies of 50/200 kHz. It also includes a built-in fast response temperature sensor.
GT41-TM includes a 12-pin transducer with mounting hardware and installation instructions. Follow the instructions carefully to avoid damaging your boat
Specifications| General | |
| Frequency | |
| Traditional | (50/200 kHz) |
| ClearVü/SideVü CHIRP | 260 kHz (245-275 kHz) & 455 kHz (445-465 kHz) |
| Power | |
| Traditional | 600 W |
| ClearVü/SideVü | 500 W |
| Beamwidth | |
| Traditional | 40°/10° |
| ClearVü/SideVü | 2.0°x51° @ 260 kHz and 1.4°x29° @ 455 kHz |
| Maximum depth | |
| Traditional | 1,500 ft |
| ClearVü | 1,000 ft |
| SideVü | 750 ft. |
| Depth/Speed/Temperature | Depth and Temperature |
| Number of pins | 12-pin |
| Cable length | 30 ft. |
| Supported deadrise/Transom angles | 0°-70° degree transom |
What's in the Box:
- 12-pin transducer
- mounting hardware
- installation instructions
