Garmin Gt50m-tm Transom Mount Downvu-sidevu 12-pin
Garmin Gt50m-tm Transom Mount Downvu-sidevu 12-pin
Couldn't load pickup availability

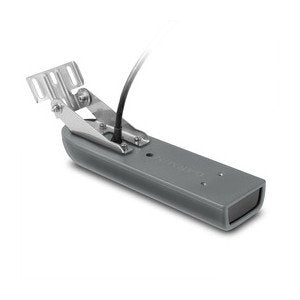

Garmin GT50M-TM Plastic Transom Mount
Downvu/Sidevu 12-Pin
Model: 010-01965-00Perfect for the shallow water fisherman who want CHIRP traditional sonar, CHIRP ClearVü and CHIRP SideVü scanning sonar, this transom mounted transducer consistently displays clear and crisp fish arches with superior target separation as well as clear pictures of objects, structure and fish that pass below and to each side of your boat.
The CHIRP ClearVü/SideVü elements have a power rating of 500 W per element (1,500 W total) and operating frequencies of 455/800 kHz. The traditional CHIRP sonar has a power rating of 300 W and operating frequencies of mid-band CHIRP 80-160 kHz. It also includes a built-in fast response temperature sensor.
GT50M-TM includes a 12-pin transducer with mounting hardware and installation instructions. Follow the instructions carefully to avoid damaging your boat.
Specifications| General | |
| Frequency | |
| CHIRP Mid-band | (80-160 kHz) |
| ClearVü/SideVü CHIRP | 455 kHz (425-485 kHz) & 800 kHz (790-850 kHz) |
| Power | |
| CHIRP Traditional | 300 W |
| ClearVü/SideVü | 500 W |
| Beamwidth | |
| Traditional | 26°-15° |
| ClearVü/SideVü | 1.1°x53° @ 455 kHz and 0.7°x30° @ 800 kHz |
| Maximum depth | |
| Traditional | 1,500 ft |
| ClearVü | 750 ft |
| SideVü | 500 ft. |
| Depth/Speed/Temperature | Depth and Temperature |
| Number of pins | 12-pin |
| Cable length | 30 ft. |
| Supported deadrise/Transom angles | 0°-70° degree transom |
What's in the Box:
- 12-pin transom mount transducer
- Instalation instructions
- Mounting hardware
