Simrad

Simrad Hs60 Gps Compass

Simrad Hs60 Gps Compass

$1,100.00 USD
$1,100.00 USD
Sale Sold out

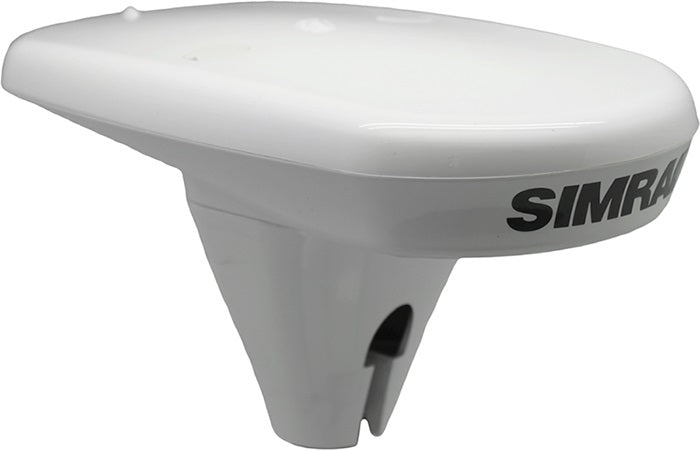

Simrad HS60 GPS Compass

Model: 000-12308-001
UPC: 9420024139516
  • Provides heading, pitch, roll, heave and position
  • Provides heading, pitch, roll, heave and position
  • 2° (RMS) heading accuracy in an amazingly small form factor
  • Integrated gyro and tilt sensors deliver fast start- up times and provide heading updates during temporary loss of GPS and satellites
  • Differential (SBAS) position accuracy of 1 m RMS
  • Accurate heading for up to 3 minutes during GPS outages
Specifications
Receiver type GPS L1 Compass
Signals received GPS
Channels GPS L1 Compass
GPS sensitivity -142 dBm
SBAS tracking 2-channel, parallel tracking
Update rate 10 Hz standard (position and heading)
rate of turn 90?/s maximum
Compass safe distance 30 cm (11.8 in)
Cold start < 60 s (no almanac or RTC)
Warm start < 20 s typical (almanac and RTC)
Hot start < 1 s typical (almanac, RTC and position)
headign fix < 10 s typical (valid position)
Maximum speed 1,850 kph (999 kts)
maximum altitude 18,288 m (60,000 ft
Accuracy
Position Single Point 3 m (95%), SBAS : 1 m (95%)
Heading 2? (RMS)
Pitch/roll 2?(RMS)
Veave 30 cm
Communication
Ports 2 Full-duplex RS232 or 1 NMEA 2000
Baud rates 4800, 9600, 19200, 38400, 57600, 115200
Correction I/O protocol RTCM SC-104
Data I/I protocol NMEA 2000
Power
Input voltage 8 to 36VDC
Power consumption 2.0 W nominal
Current consumption 165 mA @ 12 VDC
power isolation Isolated to enclosure
Reverse polarity protection Yes
Enviromental
Operating temperature -30°C to + 70°C (-22°F to + 158°F)
Storage temperature -40°C to + 85°C (-40°F to + 185°F)
Humidity 100% non-condensing
Shock and vibration IEC 60945 — EMC: CE (IEC 60945 Emissions and Immunity) FCC Part 15, subpart B CISPR22 — IP Rating: IP69 — Enclosure: UV resistant, white plastic, Geloy CR7520 (ASA)
