Simrad
Simrad Hs75 Gnss Compass
Simrad Hs75 Gnss Compass
Regular price
$2,480.00 USD
Regular price
Sale price
$2,480.00 USD
Quantity
Couldn't load pickup availability

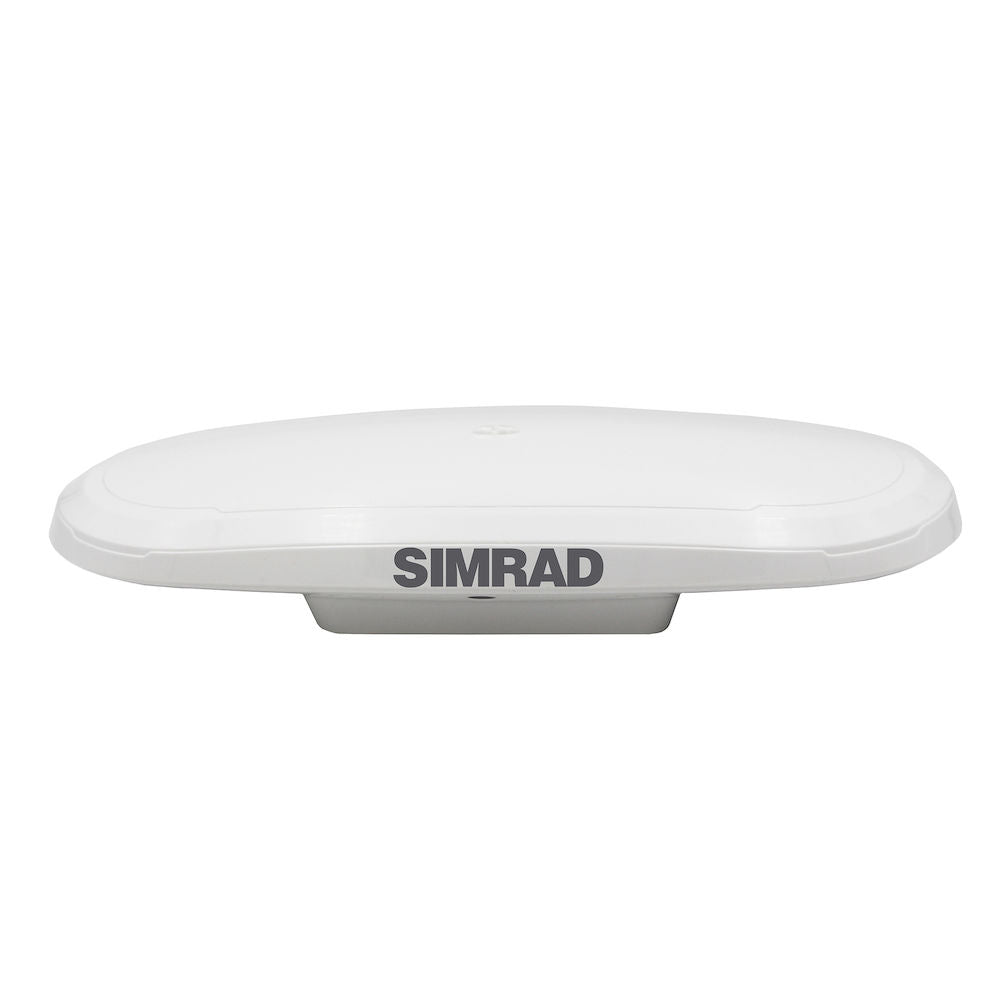

Simrad HS75 GNSS Compass
Model: 000-15585-001- Supports all current global GNSS constallations, GPS, Galileo, GLONASS, BeiDou, QZSS
- Small form factor
- Heading accuracy 0.75 degrees
- High precision positioning
- Fast start-up time
- Plug and play installation
- Dead-reckoning during temporary satellite outage
- Plug and play with Simrad autopilot and radar systems
- 10 Hz heading and position update rate
- NMEA 2000 only
- Mounts directly on flat surface
- NMEA 2000 cable sold separately in different lengths
- Well suited as autopilot heading source
| Connectivity | |
| NMEA 2000 | Yes |
| Electrical | |
| Supply Voltage | 6 - 36 VDC |
| Power Consumption, typical | 3.2 W |
| Humidity | 95% non-condensing |
| Environment | |
| Operating Temperature Range | -40°C - +70°C (-40°F - +158°F) |
| Storage Temperature Range | -40°C - +85°C (-40°F - +185°F) |
| Waterproof rating | IPX7 |
| Heading Sensor | |
| Accuracy | 0.75° RMS |
| Type | GNSS Compass with integrated gyro aiding |
| Physical | |
| Dimensions (W x H x D) | 158 x 74 x 348 mm (6.2 x 2.9 x 13.7 in) |
| Mounting Type | surface mount, pole mount |
| Weight | 0.75 kg (1.65 lbs) |
