Simrad

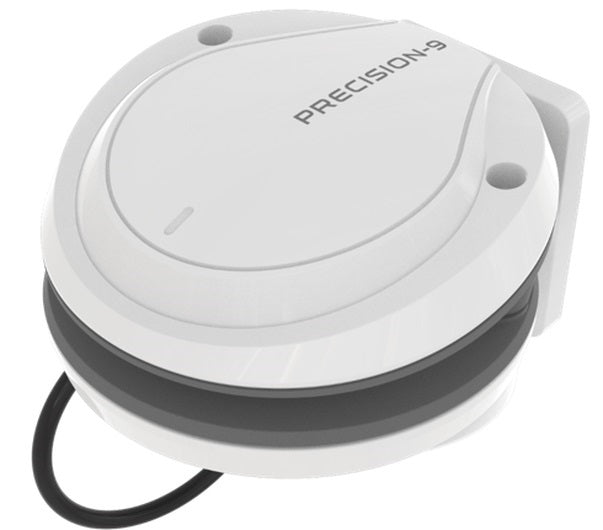

Simrad Precision 9 Compass
Simrad Precision 9 Compass
Regular price
$679.00 USD
Regular price
Sale price
$679.00 USD
Quantity
Couldn't load pickup availability
Simrad Precision 9 Compass
Model: 000-12607-001UPC: 9420024145999
- Heading, Rate Of Turn (ROT), roll, and pitch output over NMEA 2000®
- Heading and ROT calculated using sensor data from 9 axes of rotation and motion
- Accurate and reliable solid-state sensor technology
- Heading accuracy of ±2° after calibration
- Easily adjustable mounting bracket allows bulkhead or up-mast installation
- IPX7 waterproof. Best in class.
- Simple installation with a single NMEA 2000® connection
The Precision-9 Compass supplies heading and rate-of-turn information to Simrad, B&G and Lowrance autopilot, radar and navigation systems. Based on reliable solid-state sensor technology, this compact compass offers easy installation aboard any vessel.
Specifications| Supply and Interface | 8-16 V via NMEA 2000 |
| Power consumption | 0.4 W |
| NMEA 2000 Load Equivalence No. (LEN): | 1 |
| NMEA 2000 ports (input/output): | 1 |
| Calibration | Automatic (User Prompted) |
| Repeatability | ± 1.0° (or better) |
| Roll/Pitch range | ± 45° |
| Heading accuracy: | ± 2° after calibration |
| Dynamic performance: | with random excitation of ± 10° at max 1 Hz: Heading error <2°: with heading step input of 90° at a rate of 10°/s Heading error 10 sec. after turn <2° |
| Environmental protection: | IPX7 |
| Compass safe distance: | 0.5 m (1.7’) |
| Temperature range operation: | -25 to +65°C (-13 to +149°F) |
| Temperature range Storage: | -30 to +70°C - (-22 to +158°F) |
| Dimensions | H: 36 mm (1.42"), W & D: 119 mm (4.69") |
What's in the Box:
- Precision 9 Compass
- N2K-T-RD - Micro-C T-connector
- N2KEXT-15RD - 4.55 m (15-ft) NMEA 2000® cable
