Si-tex

Sitex Navpro900f 9"" Combo

Sitex Navpro900f 9"" Combo

$1,299.00 USD
$1,299.00 USD
Sale Sold out

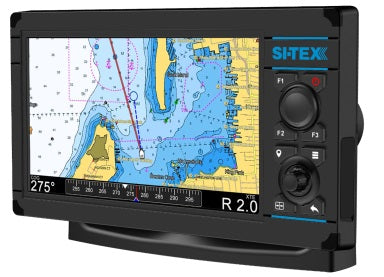

Si-Tex NavPro 900f 9"" Touchscreen MFD

Model: NAVPRO 900F
  • 9" Hi-Res. Hybrid Touch Screen Display
  • Innovative new Yoke & Swivel mount
  • NMEA-0183 & NMEA2000 Interfacing
  • WIFI Interface
  • Automatic Software Updates when in WIFI Coverage
  • Captain Cloud automatically backs up all User Data to a Free Cloud Based Data backup Service for Waypoints, Marks, Events, and Track memories when in WIFI coverage.
  • Mirror Screen Capability via Bluetooth connection allows user to download mirror app to his Android based smart phone and view and control the NavPro 900 from Smart Phone.
  • C-Map 4D Cartography — comes bundled with a US Coastal & Rivers Continental 4D card in the box
  • Optional dedicated Remote Control Available
  • Designed for easy flush mount without any special kit needed
  • New CHIRP Sounder with selectable 300w, 600w, & 1kW outputs
  • CHIRP Sounder has scroll back screen memory that allows user to quickly scroll back and pickoff a location to mark on Nav Chart.
  • Uses the popular AIrmar CHIRP Transducers with TX ID will automatically setup the Sounder transducer interconnect
  • Adapters available to allow the unit to be installed on older non-CHIRP transducers. Like 50/200 kHz Dual Frequency transducers and 120kHz Single Freq. transducers. This allows the NavPro 900F to be used to retro fit onto any of the older SI-TEX Transducers. For example, any of the transducers used by the very popular old CVS-106 Sounders. 50/200 & 120kHz
  • If customer doesn’t have a need for CHIRP sounding he can use a traditional less expensive transducer option
  • Internal Hi-Resolution 18Hz 72 Channel GPS Receiver & Antenna
  • New User interface makes the unit very easy to operate and navigate with
  • Full AIS Integration when interfaced to an AIS Unit
Specifications
LCD Display Size 9.0"
Display Brightness 1,100 NITS
Display Resolution 800x480
Touch Screen Yes, Capacitive Multi-Touch
Keyboard Backlight Yes
Operating Voltage 10 to 35 VDC
GPS Receiver Built-In High Resolution 18Hz 72 Channel GPS/GLONASS
External GPS Yes, optional via 6 pin Connector
Network Connections NMEA-2000 (Optional Cable Required)
ual NMEA-0183 Input/Output Ports
WIFI Connection Yes
Bluetooth Connection Yes
Waterproof Rating IPX6
Operating Temperature range -10’C to +60’C
Dimensions 10.9" Wide x 6.8" High x 3.7" Deep
Warranty 2 Year

What's in the Box:
  • NavPro 900 Display Unit
  • C-Map 4D Continental Chart Card
  • Mounting Bracket
  • Mounting Screws
  • Combination Power Data Cord
  • Sun Cover
  • Installation & Operation manual
