Xantrex

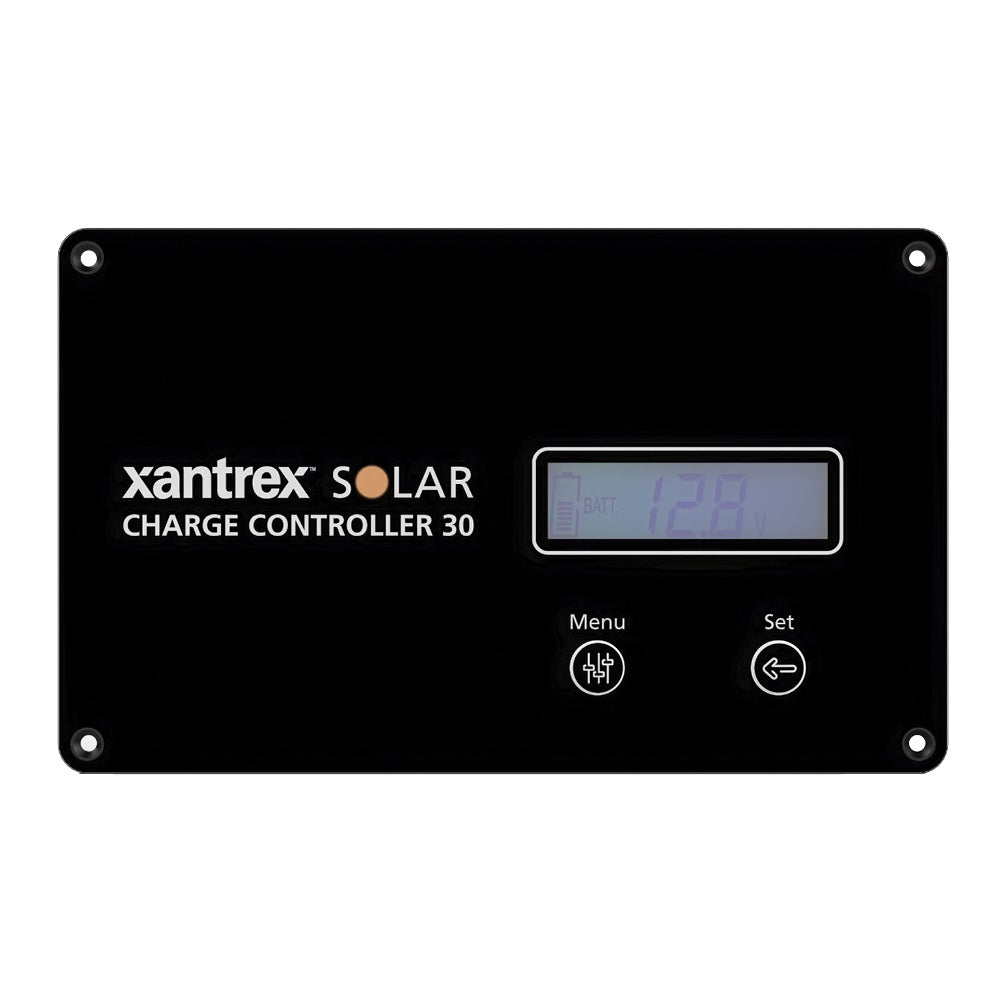

Xantrex Solar Pwm 30a Charge Controller
Xantrex Solar Pwm 30a Charge Controller
Regular price
$184.44 USD
Regular price
Sale price
$184.44 USD
Quantity
Couldn't load pickup availability
Xantrex PWM Charge Controller
Model: 709-3024-01- Advanced multi-stage charging technology, Bulk, Absorption, Float, Equalization
- Battery types supported: Sealed (AGM), Gel, Flooded, Lithium Iron Phosphate (LiFePO4)
- Best-in-class PV array and battery protections
- Aesthetic flush-mount industrial design
Designed to charge lithium ion batteries including LIFePO4, the 30 A PWM (Pulse Width Modulation) charge controller features a flush mount industrial design for a clean finish.
The Xantrex Solar PWM Charge Controller 30 features a highly-efficient PWM charging mode, designed specifically for an aesthetically clean and integrated look in an RV, boat, and truck. Intuitive and easy-to-program to get your solar system harvesting energy as quickly as possible. Equipped with best-in-class PV array and battery protections and a built-in LCD display providing real-time system data. Optional accessories include a remote battery temperature sensor.
Specifications| Nominal System Voltag | 12/24V Auto-Detect |
| Battery Input Voltage Range | 8V to 32V |
| Rated Charge Current | 30A |
| Max. PV Short Circuit Current | 30A |
| Max. PV Open Circuit Voltage | 50A |
| Battery Types Supported | Sealed (AGM) / Gel / Flooded / Lithium Iron Phosphate (LiFePO ) |
| elf-consumption | 12V: 4.2mA 24V: 2.6mA |
| Temperature Compensation Coefficient | -3mV/°C/2V |
| Grounding | Common negative |
| ENVIRONMENTAL DATA | |
| Storage Temperature Range | -30°C to 80°C |
| Operating Temperature Range | -20°C to 55°C (fully rated output) |
| MECHANICAL DATA | |
| Dimensions | 7.03"" W x 4.31"" H x 1.86"" D (178.5mm W x 109.4mm H x 47.3mm D) |
| Max. Cable Size (PV Array and Battery | 0.63in (16mm ) / 6AWG |
| Recommended Cable Size | 0.24in (6mm2) / 10AWG or larger |
